FHHS - FFC/FPC / Wire to Board / For FFC/FPC

Product profile

Application	FFC/FPC
Connector	Wire to Board
Familytype	For FFC/FPC
Technology	ZIF
Pitch	0.5 mm
Smt	no

Spécifications

Current rating	0.5A AC, DC
Insulation resistance	100 MOhms min.
Temperature range	-25 to + 85 Celsius degrees
Voltage rating	50V AC, DC

Download specifications

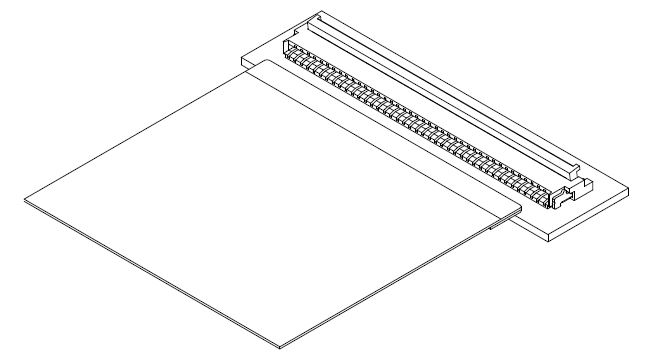

This is 0.5 mm pitch, back flip type FPC connector for 0.3 mm thick FPC. Realized space saving with thin of 1.0 mm mounting he ight.Considering the transmission of various high-speed interfaces suchas ThunderboltTM , the differential impedance shall be matched at 90?. Low Profile / High-speed transmission / Back flip mechanism

Description filter

0 référence

To order sample, you must LOG IN

More information use contact form
