FAH - Connectors / Wire to wire

Product profile

Application	Connectors
Connector	Wire to wire
Technology	Crimp
Pitch	16.0 mm
Smt	no

Spécifications

Current rating	50A AC, DC
Insulation resistance	100 MOhms min.
Temperature range	-25 to + 85 Celsius degrees
Voltage rating	600V AC, DC

Download specifications

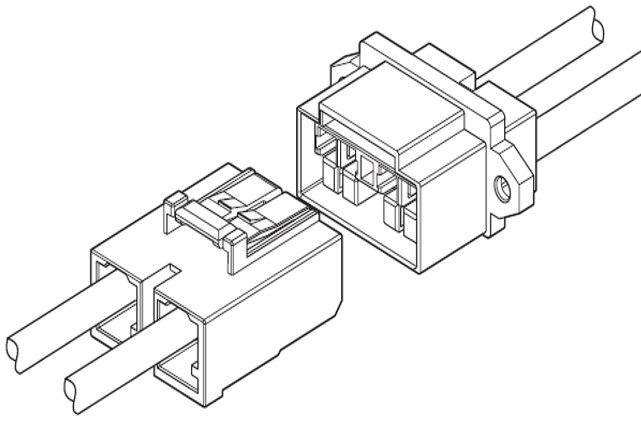

One-touch connection & disconnection connector corresponding to high current. This is a WTW connector, which current rating is 50A capability in 2-circuit, male & female contacts of this connector is designed as the same shape.Finger protection feayture on both housings, Prevention of false mating, High reliability.

Description filter

7 références

To order sample, you must LOG IN

More information use contact form
