FAB - Automotive / Wire to wire / Spring lock type

Product profile

Application	Automotive
Connector	Wire to wire
Familytype	Spring lock type
Technology	Sealed
Pitch	0
Smt	no

Spécifications

Current rating	5A AC, DC
Insulation resistance	250 MOhms min.
Temperature range	-40 to +120 Celsius degrees
Voltage rating	14V AC, DC

Download specifications

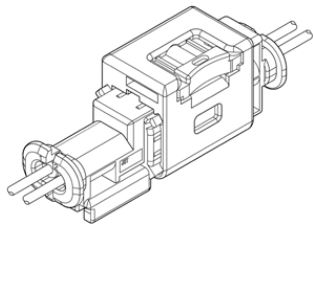

0.64mm single sealed wire to wire connector with rigid design and spring lock mechanism. Spring force prevents half-mating during mating and keeps constant rigid connectionbetween male and female connector.

Description filter

3 références

To order sample, you must LOG IN

More information use contact form
