EVZ2 - Automotive / Wire to wire / Waterproof

Product profile

Application	Automotive
Connector	Wire to wire
Familytype	Waterproof
Technology	Sealed
Pitch	2.55 mm
Smt	no

Spécifications

Current rating	5A DC
Insulation resistance	100 MOhms min.
Temperature range	-40 to +125 Celsius degrees

Download specifications

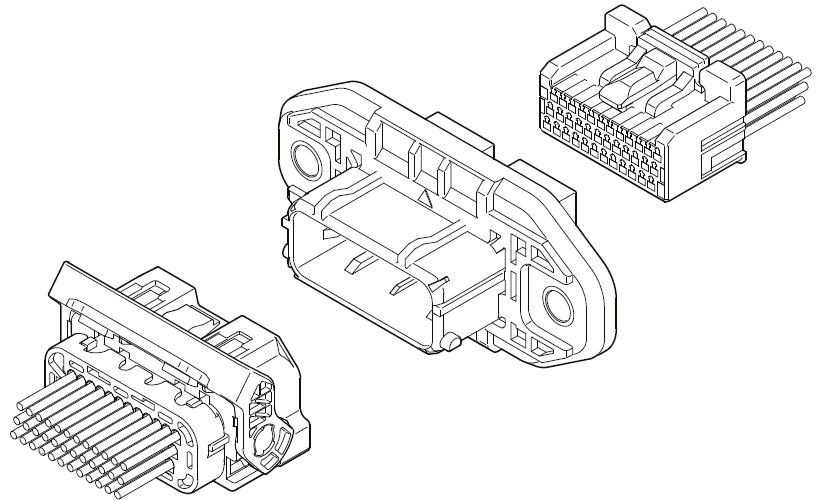

This Automotive WTW connector is a waterpoof & panel mount one. It's possible to connect inside & outside of the case with harness by mounting male connector to the case. 3 pieces structure. Sealed: only attaching male connector to case body,it ensures waterproof property. Double seal structure of surface and shaft seal realizes the strong waterproof property. Variation: lineup of 10, 27 & 36 circuits. Terminal plating selectable from gold-plated or tin-plated.

Description filter

7 références

To order sample, you must LOG IN

More information use contact form
