CZF - IDC / Wire to Board

Product profile

Application	IDC
Connector	Wire to Board
Technology	Insulation displacement
Pitch	1.5 mm
Smt	no

Spécifications

Current rating	2A AC, DC
Insulation resistance	500 MOhms min.
Temperature range	-25 to + 85 Celsius degrees
Voltage rating	100V AC, DC

Download specifications

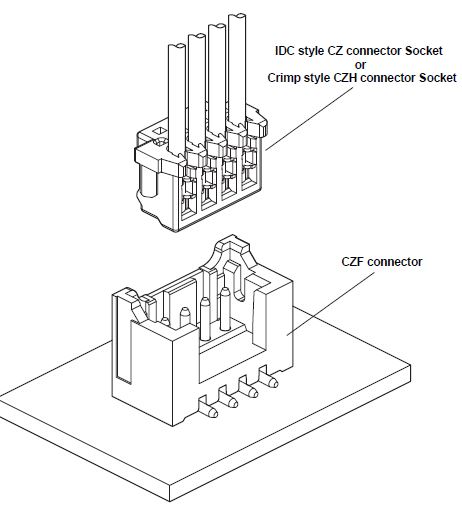

The SMT top entry type headers that can be mated with the 1.5mm pitch CZ connector socket are on the lineup. Suction tape is not required because the flat area for picking up is provided to the connector. This header can be accomodated to both thecrimp style and the insulation displacement (ID) style sockets.

Description filter

4 références

To order sample, you must LOG IN

More information use contact form
