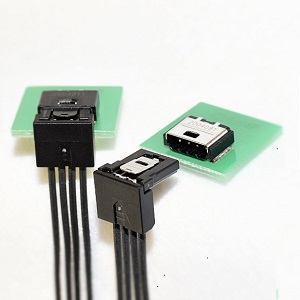

CULH - Automotive / Wire to Board / Small equipement

Product profile

Application	Automotive
Connector	Wire to Board
Familytype	Small equipement
Technology	Crimp
Pitch	1.8 mm
Smt	no

Spécifications

Current rating	5A AC, DC
Insulation resistance	100 MOhms min.
Temperature range	-40 to +125 Celsius degrees
Operating voltage	150V AC, DC

Download specifications

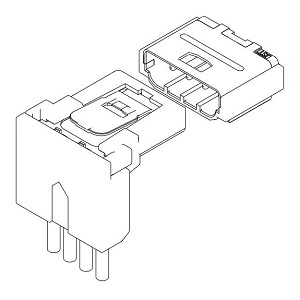

Smallest SMT connector in the world which can be used in automotive application (Height: 3.5mm). Conforming to the Automotive Standard / Low height & Short mating length / Right angle type / Clear lock feeling / Crimp terminal structure

Description filter

5 références

To order sample, you must LOG IN

More information use contact form
