CPM - Automotive / Wire to Board

Product profile

Application	Automotive
Connector	Wire to Board
Pitch	2 mm
Smt	no

Spécifications

Current rating	3A AC, DC
Insulation resistance	100 MOhms min.
Temperature range	-40°C to 125°C
Number of circuits	8, 12, 16 & 20
Applicable wire	UL3265 0.3mm²
Compliant with rohs

Download specifications

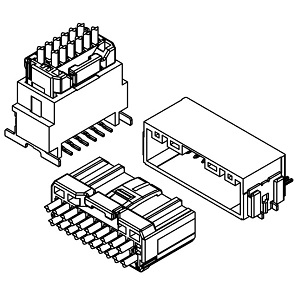

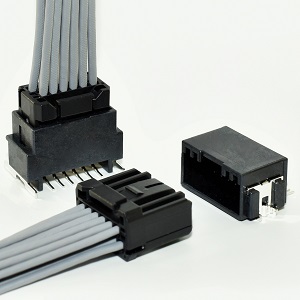

Miniaturized & low profile SMT automotive connector. 0.50 terminal with 2 mm pitch realized its miniaturization. Miniaturized & Low profile. High Heat resistance 125°C. Lock fip-up prevention mechanism. Conforming to UL94 V-0.Same PCB pattern as CPT.

Description filter

6 références

To order sample, you must LOG IN

More information use contact form

Production site

J.S.T. FRANCE S.A.S.
Z.I. Vitry Marolles B.P. 60023
51301 Vitry le François
FRANCE
Adresse email : jst@jst.fr
Tél +33 (0)3 26 72 45 03

Our certifications

Presentation from the company

JST France, electronic components manufacturer, was established in Vitry-le-François in 1989. Our plant is composed of 3 machine shops (molding, assembly and stamping) and an industrialization department. This allows us to be closer from our French customers and main European decision-makers.
We produce over-molding housings, connectors and harnesses, mainly for automotive sector. We are certified ISO/TS16949 in order to meet partners' quality requirements and to satisfy their needs. Among our electric components, we can put forward a wide variety of innovative catalog products and crimping tools: FFC/FPC connectors (insertion strength zero, no ZIF), to crimp/crossing, SMT/CMS (surface mounting), insulation displacement (IDC), board to board, board to wire, wire to wire, LED, waterproof, pitch from 0.1 to 13mm, hand tools, semi-automatic presses and applicators for all our crimp contacts.
We can also provide you with a wide range of crimp terminals (Faston, insulated, tubular, rolled/brazed, etc.), cable ends and the corresponding electric tools.
