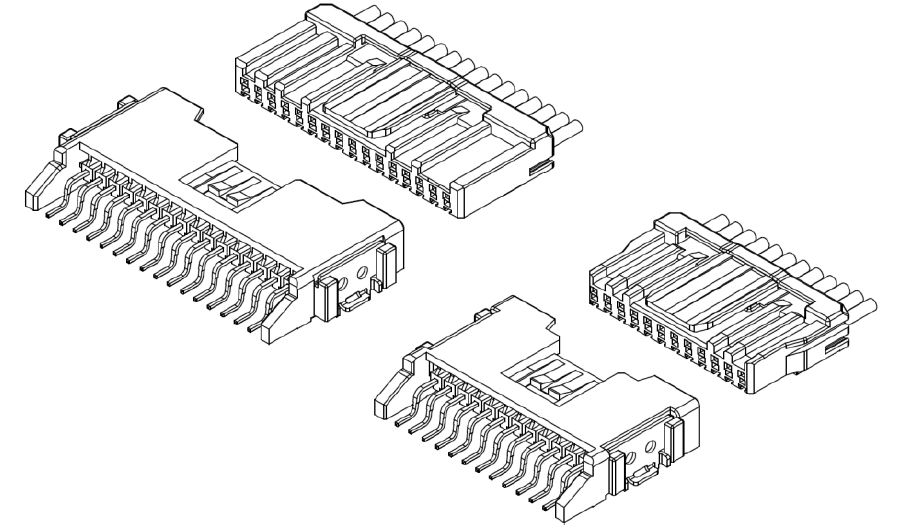

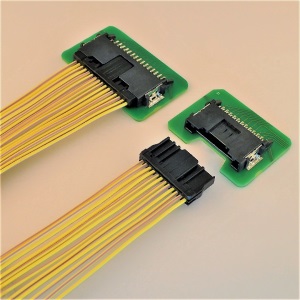

CMEC - Automotive / Wire to Board

Product profile

Application	Automotive
Connector	Wire to Board
Pitch	2.0 mm
Smt	no

Spécifications

Current rating	3A AC, DC
Insulation resistance	100 MOhms min.
Temperature range	-40Â°C to 105Â°C
Number of circuits	12 & 16
Applicable wire	AWG #22

Download specifications

Developped in pusuit of miniaturization & low profile as SMT connector for Automotive. 0.50 terminal with 2.0mm pitch realized miniaturization. max male & female connector mating & unmating operation height:6.5mm. Integrated housing lance design tokeep good hand feeling. High terminal reliability with TPA structure.

Description filter

2 références

To order sample, you must LOG IN

More information use contact form
