CF CARD CONNECTOR MA TYPE (EJECTOR) - Card / Board to Board / Memory

Board to Board / CF Card connector MA type (Ejector)

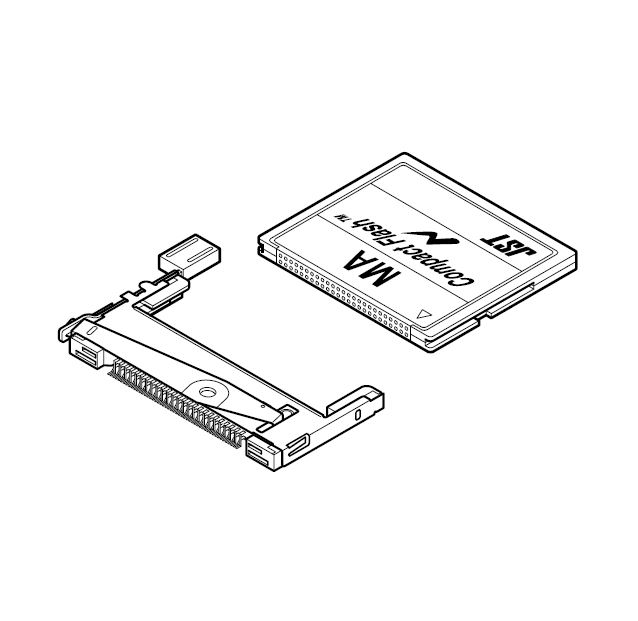

Board to Board / CF Card connector MA type (Ejector) - Schema

Product profile

Application	Card
Connector	Board to Board
Familytype	Memory
Technology	Compact Flash
Smt	no

Spécifications

Current rating	0.5A AC, DC
Insulation resistance	1000 MOhms min.
Temperature range	-25 to + 60 Celsius degrees
Compliant with rohs

Download specifications

Applicable to CF cards types I/II
The assembly of the ejector mechanism to the mounted header is a simple one-touch operation.
The ejector makes contact with the solder tabs of the header, thus preventing static electricity.

Description filter

4 références

To order sample, you must LOG IN

More information use contact form
