CF CARD CONNECTOR MA TYPE (ADAPTER) - Card / Board to Board / Memory

Board to Board / CF Card connector MA type (Adapter)

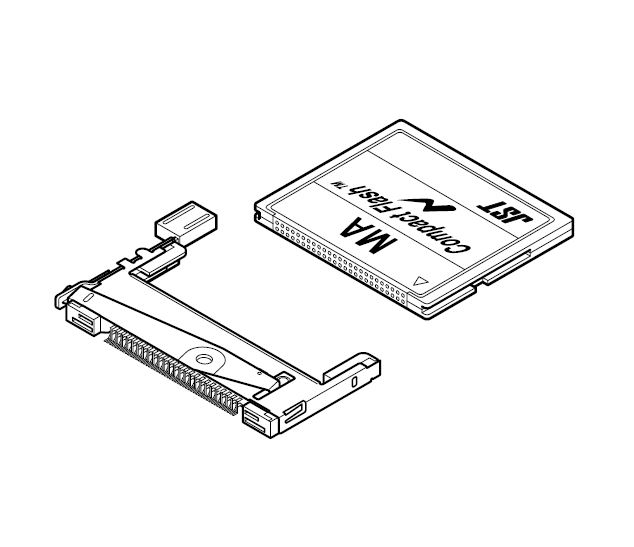

Board to Board / CF Card connector MA type (Adapter) - Schema

Product profile

Application	Card
Connector	Board to Board
Familytype	Memory
Technology	Compact Flash
Smt	no

Spécifications

Current rating	0.5A AC, DC
Insulation resistance	1000 MOhms min.
Temperature range	-25 to + 60 Celsius degrees
Compliant with rohs

Download specifications

In addition to the connectors applicable to CF type I cards, those for CF type II cards are also available. -Socket/SMT type -Card frame/for type I cards -Adapter/for typeI,II cards -Header/for type I,II cards -Ejector/for type I,II cards

Description filter

0 référence

To order sample, you must LOG IN

More information use contact form
