BMSC - Automotive / Wire to Board

Product profile

Application	Automotive
Connector	Wire to Board
Pitch	2.2 mm
Smt	no

Spécifications

Current rating	5A AC, DC
Insulation resistance	100 MOhms min.
Temperature range	-40°C to 105°C
Number of circuits	16, 24, 28, 32, 36 & 40
Hand tool	YRK-1003
Crimping applicator	APLMK SNAC3-A001-064 / APLMK SNAC3-A021-064

Download specifications

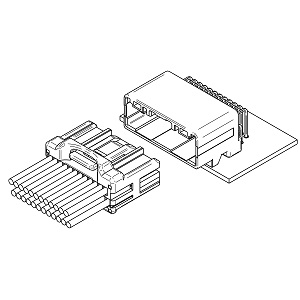

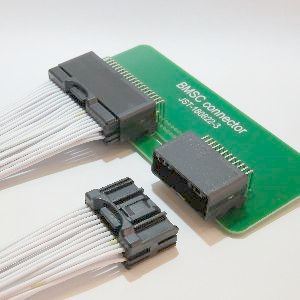

0.64 terminal, 2.2 mm pitch dual-row, board-to-wire connector for automotive applications. Crimp-style / Double-row / With secure locking device / Low insertion force / Key code option / Flammability: UL94V-0 / High reliability.

Description filter

11 références

To order sample, you must LOG IN

More information use contact form

Production site

J.S.T. FRANCE S.A.S.
Z.I. Vitry Marolles B.P. 60023
51301 Vitry le François
FRANCE
Adresse email : jst@jst.fr
Tél +33 (0)3 26 72 45 03

Our certifications

Presentation from the company

JST France, electronic components manufacturer, was established in Vitry-le-François in 1989. Our plant is composed of 3 machine shops (molding, assembly and stamping) and an industrialization department. This allows us to be closer from our French customers and main European decision-makers.
We produce over-molding housings, connectors and harnesses, mainly for automotive sector. We are certified ISO/TS16949 in order to meet partners' quality requirements and to satisfy their needs. Among our electric components, we can put forward a wide variety of innovative catalog products and crimping tools: FFC/FPC connectors (insertion strength zero, no ZIF), to crimp/crossing, SMT/CMS (surface mounting), insulation displacement (IDC), board to board, board to wire, wire to wire, LED, waterproof, pitch from 0.1 to 13mm, hand tools, semi-automatic presses and applicators for all our crimp contacts.
We can also provide you with a wide range of crimp terminals (Faston, insulated, tubular, rolled/brazed, etc.), cable ends and the corresponding electric tools.
