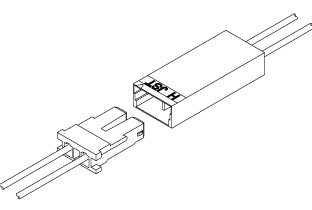

BHS (W TO W) - Connectors / Wire to wire

Product profile

Application	Connectors
Connector	Wire to wire
Technology	Crimp
Pitch	3.5 mm
Smt	no

Spécifications

Current rating	1A AC, DC
Insulation resistance	1000 MOhms min.
Temperature range	-25øC to 85øC
Voltage rating	1400V AC, DC
Number of circuits	2
Applicable wire	AWG #28 to #24
Hand tool	YRS-854
Crimping press	AP-KN21MJ
Compliant with rohs

Download specifications

Wire-to-wire vertion connectors, designed for connecting liquid crystal display back light lamp to their starters.

Description filter

3 références

To order sample, you must LOG IN

More information use contact form
