ATLF - Automotive / Wire to Board

Product profile

Application	Automotive
Connector	Wire to Board
Pitch	0
Smt	no

Spécifications

Current rating	5A DC max
Temperature range	-40°C to 125°C
Voltage rating	14V AC, DC
Number of circuits	21
Applicable wire	AWG #22 to #18

Download specifications

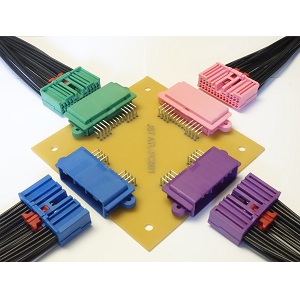

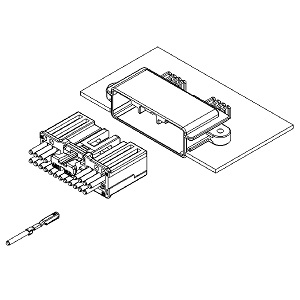

21 Circuits 0.64 unsealed connector system with Connectors Position Assurance & Independant Secondary Lock Terminal Position Assurance. Ultra-low profile design for high density PCB placement with multiple key codes. Unique PCB mouting, ultra-lowprofile side entry. 9 unique physical & color key options. For Automitive applications.

Description filter

13 références

To order sample, you must LOG IN

More information use contact form
