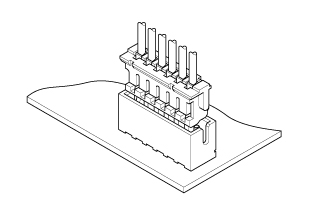

ZH - Connectors / Wire to Board
Product profile
| Application | Connectors |
| Connector | Wire to Board |
| Technology | Crimp |
| Pitch | 1.5 mm |
| Smt | yes |
Spécifications
| Applicable pc board thickness | 0.6 to 1.2 mm, 1.6 mm |
| Current rating | 1A AC, DC |
| Insulation resistance | 500 MOhms min. |
| Temperature range | -25øC to 85øC |
| Voltage rating | 50V AC, DC |
| Applicable wire | AWG #32 to #26 |
| Hand tool | WC-491/WC-ZH2632/YRS-491 |
| Crimping press | AP-KN21MJ |
| Semi-automatic applicator | MINI KB1T FINE ADJ SZH-002T-P0.5-J |
| Compliant with rohs | |
| Colored | |
Housing lances
The dimple at the center of the contact ensures positive contact and low contact resistance at all times.
Fully shrouded header
The same shrouded header can be used for the ZR insulation displacement connector.
Description filter
- B10B-ZR-SM4-TFT (LF)(SN)
- B2B-ZR-SM4-TFT(D)(LF)(SN) *
- B4B-ZR-SM4-GW-TF(LF)(SN) *
- B6B-ZR-SM4-TF(D)(LF)(SN) *
- B6B-ZR-SM4-TFT(LF)(SN) *
- B7B-ZR-SM4-TF(D)(LF)(SN) *
- B8B-ZR-SM4-TFT(LF)(SN) *
- S2B-ZR-SM4A-TF(LF)(SN) *
- S3B-ZR-SM4A-TF(LF)(SN) *
- S3B-ZR(LF)(SN) *
- ZHR-3(PP) *
- B2B-ZR-GU *
- B3B-ZR-1.8(LF)(SN) *
- B5B-ZR (LF)(SN)
- B5B-ZR-GU *
- B6B-ZR-GU *
- B7B-ZR(LF)(SN) *
- B7B-ZR-3.4(LF)(SN) *
- B8B-ZR-3.4(LF)(SN) *
- B9B-ZR(LF)(SN) *
- S11B-ZR-3.4(LF)(SN) *
- S12B-ZR(LF)(SN) *
- S2B-ZR-3.4(LF)(SN) *
- S2B-ZR-GU *
- S3B-ZR-3.4(LF)(SN) *
- S4B-ZR-3.4(LF)(SN) *
- S5B-ZR(LF)(SN) *
- S5B-ZR-GU *
- S6B-ZR-GU *
- S9B-ZR(LF)(SN) *
- SZH-002GU-P0.5 *
- ZHR-13 *
- ZHR-2-E *
- ZHR-2-K *
- ZHR-2-R *
- ZHR-3 *
- ZHR-3-E *
- ZHR-3-R *
- ZHR-4 *
- ZHR-4(PP) *
- ZHR-5 *
- ZHR-5-E *
- ZHR-5-K *
- ZHR-5-R *
- ZHR-7 *
- ZHR-8(PP) *
- ZHR-8-E *
- ZHR-8-K *
- ZHR-8-M *
- ZHR-8-R *
- ZHR-9(PP) *
- B10B-ZR(LF)(SN) *
- B10B-ZR-SM4-TF(LF)(SN) *
- B10B-ZR-SM4-TFT(LF)(SN) *
- B10B-ZR-SM4-TFT-(LF)(SN)
- B11B-ZR-SM4-TF(LF)(SN) *
- B11B-ZR-SM5F-TF (LF)(SN)
- B12B-ZR(LF)(SN) *
- B12B-ZR-SM4-TF(LF)(SN) *
- B12B-ZR-SM4-TFT(LF)(SN) *
- B13B-ZR-SM4-TF(LF)(SN) *
- B2B-ZR (LF)(SN)
- B2B-ZR-SM3F-TF(LF)(SN)
- B2B-ZR-SM4-GU-TF(LF)(SN) *
- B2B-ZR-SM4-GW-TF (LF)(SN)
- B2B-ZR-SM4-TF(LF)(SN) *
- B2B-ZR-SM4-TFT(LF)(SN) *
- B2B-ZR-SM4F-TF(LF)(SN)
- B2B-ZR-SM5F-TF(LF)(SN)
- B3B-ZR(LF)(SN) *
- B3B-ZR-K(LF)(SN) *
- B3B-ZR-SM4-TF(LF)(SN) *
- B3B-ZR-SM4-TFT(LF)(SN) *
- B3B-ZR-SM5F-TF(LF)(SN)
- B4B-ZR(LF)(SN) *
- B4B-ZR-3.4(LF)(SN) *
- B4B-ZR-HTN-1-TF(LF)(SN)
- B4B-ZR-SM4-GW-TF (LF) (SN)
- B4B-ZR-SM4-TF(LF)(SN) *
- B4B-ZR-SM4-TFT(LF)(SN) *
- B4B-ZR-SM4F-TF(LF)(SN)
- B4B-ZR-SM5F-TF(LF)(SN)
- B5B-ZR-SM4-GW-TFT(LF)(SN) *
- B5B-ZR-SM4-TF(LF)(SN) *
- B5B-ZR-SM4-TFT(LF)(SN) *
- B5B-ZR-SM5F-K-TF(LF)(SN)
- B5B-ZR-SM5F-TF(LF)(SN)
- B6B-ZR(LF)(SN) *
- B6B-ZR-SM4-GW-TF(LF)(SN) *
- B6B-ZR-SM4-TF(LF)(SN) *
- B7B-ZR-SM4-TF(LF)(SN) *
- B7B-ZR-SM4-TFT(LF)(SN) *
- B8B-ZR(LF)(SN) *
- B8B-ZR-SM4-E-TF(LF)(SN) *
- B8B-ZR-SM4-R-TF(LF)(SN) *
- B8B-ZR-SM4-TF(LF)(SN) *
- B9B-ZR-SM4-GU-TF(LF)(SN) *
- B9B-ZR-SM4-GU-TFT(LF)(SN) *
- B9B-ZR-SM4-TF(LF)(SN) *
- B9B-ZR-SM4-TFT(LF)(SN) *
- S10B-ZR(LF)(SN) *
- S10B-ZR-SM2-TF(LF)(SN)
- S10B-ZR-SM4A-TF(LF)(SN) *
- S11B-ZR(LF)(SN) *
- S12B-ZR-SM2-TF(LF)(SN)
- S12B-ZR-SM4A-TF(LF)(SN) *
- S13B-ZR-SM4A-TF(LF)(SN) *
- S2B-ZR(LF)(SN) *
- S2B-ZR-SM2-TF(LF)(SN)
- S2B-ZR-SM4A-G-TF(LF)(SN)
- S2B-ZR-SM4A-GU-TF(LF)(SN)
- S2B-ZR-SM4A-K-TF(LF)(SN)
- S36B-ZROK-2A-R *
- S36B-ZROK-3A-R *
- S3B-ZR-SM2-TF(LF)(SN)
- S3B-ZR-SM2-TF(D)(LF)(SN)
- S3B-ZR-SM4A-TF (LF)(SN)
- S48B-ZROK-2A-R *
- S48B-ZROK-3A-R *
- S4B-ZR(LF)(SN) *
- S4B-ZR-SM2-TF(D)(LF)(SN)
- S4B-ZR-SM2-TF(LF)(SN)
- S4B-ZR-SM4A-R-TF(LF)(SN)
- S4B-ZR-SM4A-TF(D)(LF)(SN)
- S4B-ZR-SM4A-TF(LF)(SN) *
- S5B-ZR-SM2-TF(LF)(SN)
- S5B-ZR-SM4A-TF(LF)(SN) *
- S6B-ZR(LF)(SN) *
- S6B-ZR-SM2-TF(LF)(SN)
- S6B-ZR-SM4A-TF(LF)(SN) *
- S7B-ZR(LF)(SN) *
- S7B-ZR-SM2-TF(LF)(SN)
- S7B-ZR-SM4A-K-TF(LF)(SN)
- S7B-ZR-SM4A-TF(LF)(SN) *
- S8B-ZR(LF)(SN) *
- S8B-ZR-SM2-TF(LF)(SN)
- S8B-ZR-SM4A-TF(LF)(SN) *
- S9B-ZR-SM4A-GU-TF(LF)(SN)
- S9B-ZR-SM4A-TF(LF)(SN) *
- SZH-002G-P0.5 *
- SZH-002GA-P0.5 *
- SZH-002T-P0.5 *
- SZH-003T-P0.5 *
- ZHR-10 *
- ZHR-11 *
- ZHR-12 *
- ZHR-2 *
- ZHR-3-K *
- ZHR-6 *
- ZHR-8 *
- ZHR-9 *
