ZE - Connectors / Wire to Board

Wire to Board /  ZE - Schema

Product profile

ApplicationConnectors
ConnectorWire to Board
TechnologyCrimp
Pitch1.5 mm
Smtyes

Spécifications

Current rating2A AC, DC
Insulation resistance500 MOhms min.
Temperature range-25øC to 85øC
Voltage rating100V AC, DC
Applicable wireAWG #30 to #24
Hand toolWC-ZE2426/YRS-1300
Crimping pressAP-KN21MJ
Semi-automatic applicatorMINI KB1T FINE ADJ SZE-002T-P0.3-J
Compliant with rohs
Colored

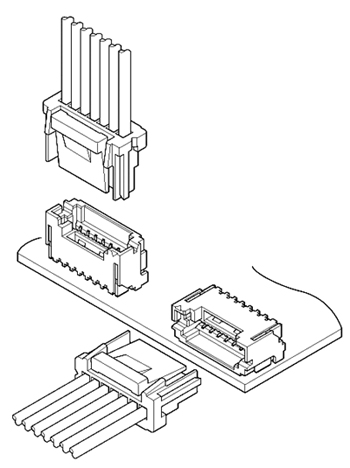

1.5mm pitch secure lock type connector. Fork-shaped header contact provides the good mating feeling and secure mating operation.

Description filter


34 références

To order sample, you must LOG IN
More information use contact form
