XNI - Connectors / Wire to Board

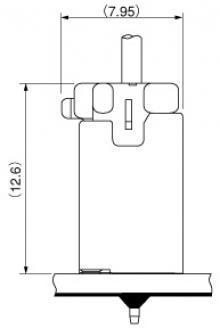

Wire to Board /  XNI - Schema

Product profile

ApplicationConnectors
ConnectorWire to Board
TechnologyCrimp
Pitch2.5 mm
Smtno

Spécifications

Current rating3A AC, DC
Insulation resistance1000 MOhms min.
Temperature range-25øC to 85øC
Voltage rating250V AC, DC
Applicable wireAWG #30 to #22
Hand toolYRS-1380
Crimping pressAP-KN21MJ
Semi-automatic applicatorMINI KB1T FINE ADJ SXNI-001T-P0.6-J
Compliant with rohs

This connector is 2.5mm pitch wire-to-board connector that has a mechanism to prevent an incomplete mating by utilizing the inertial force when mating connector. In all circuits of connector, controlled key for preventing mismatching of mating is add

Description filter


24 références
