XM (W TO W) - Connectors / Wire to wire

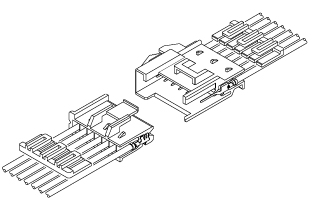

Wire to wire /  XM (W to W) - Schema

Product profile

ApplicationConnectors
ConnectorWire to wire
TechnologyCrimp
Pitch2.5 mm
Smtno

Spécifications

Current rating3A AC, DC
Insulation resistance500 MOhms min.
Temperature range-25øC to 85øC
Voltage rating250V AC, DC
Applicable wireAWG #28 to #20
Applicable panel thickness0.5 to 1.8mm
Hand toolYC-701R/YRS701
Crimping pressAP-KN21MJ
Semi-automatic applicatorMINI KB1T SXM-01TP0.6-J
Compliant with rohs


The inn
The inner-housing lock secures the plug to the receptacle and prevents accidental disconnection.
Secondary retainers provide added protection against non-insertion or disconnection.
Housing lances
Mountable on panels of various thickness

Description filter


32 références
