XAD (W TO W) - Connectors / Wire to wire

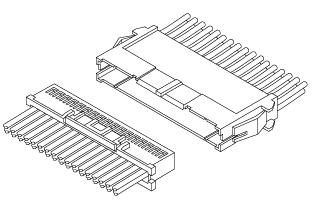

Wire to wire /  XAD (W to W) - Schema

Product profile

ApplicationConnectors
ConnectorWire to wire
TechnologyCrimp
Pitch2.5 mm
Smtno

Spécifications

Current rating3A AC, DC
Insulation resistance500 MOhms min.
Temperature range-25øC to 85øC
Voltage rating250V AC, DC
Applicable wireAWG #28 to #20
Hand toolWC-700M/YRS-701
Crimping pressAP-KN21MJ
Semi-automatic applicatorMINI KB1T SXA01-J
Compliant with rohs

Double-row type connector with secure locking device either for wire-to-wireDouble-row type connector with secure locking device either for wire-to-wire connection or board-to-wire connection
Newly designed long body box-shaped contact reduces its s

Description filter


10 références
