VL (W TO W) - Connectors / Wire to wire

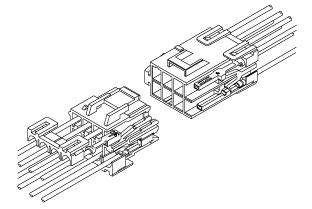

Wire to wire /  VL (W to W) - Schema

Product profile

ApplicationConnectors
ConnectorWire to wire
TechnologyCrimp
Pitch6.2 mm
Smtno

Spécifications

Insulation resistance1000 MOhms min.
Temperature range-25øC to 90øC
Applicable wireAWG #22 to #12
Applicable panel thickness0.5 to 2.0mm
Hand toolWC-590/WC-591/WC-592
Crimping pressAP-KN21MJ
Semi-automatic applicatorMINI KB1T SVF/M-61T-P2.0-J
Compliant with rohs

Designed for circuits requiring up to 20A (1 or 2-circuit with AWG #12 wire).
The inner-housing lock secures the plug to the receptacle and prevents accidental disconnection.
Housing lances
Secondary retainers
