THR - Connectors / Wire to wire

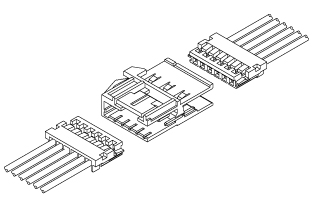

Wire to wire /  THR - Schema

Product profile

ApplicationConnectors
ConnectorWire to wire
TechnologyCrimp
Pitch2.5 mm
Smtno

Spécifications

Current rating3A AC, DC
Insulation resistance500 MOhms min.
Temperature range-25øC to 85øC
Voltage rating250V AC, DC
Applicable wireAWG #28 to #22
Applicable panel thickness0.5 to 2.0mm
Hand toolYC-580R/YRS-580
Crimping pressAP-KN21MJ
Semi-automatic applicatorMINI KB1T SHR-001T-P0.6-J
Compliant with rohs

Matable with HR receptacles
Both crimp style and insulation displacement HR connector receptacles can be accommodated by the THR connector.
Secure lock mechanism
Mountable on panels of various thickness without using tools
