SM - Connectors / Wire to wire

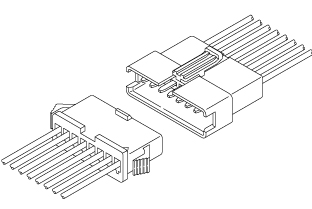

Wire to wire /  SM - Schema

Product profile

ApplicationConnectors
ConnectorWire to wire
TechnologyCrimp
Pitch2.5 mm
Smtno

Spécifications

Current rating3A AC, DC
Insulation resistance500 MOhms min.
Temperature range-25øC to 85øC
Voltage rating250V AC, DC
Applicable wireAWG #28 to #22
Applicable panel thickness0.5 to 2.0mm
Hand toolWC-121/WC-122 YRS-121/YRS-122
Crimping pressAP-KN21MJ
Semi-automatic applicatorMINIKB1TSHF001T08BS-J/MINIKB1TSYM001TP06-J
Compliant with rohs


High contact pressure
Secure lock mechanism
Mountable on panels of various thickness without using tools.
The contacts are individually surrounded by housing walls.
