RWZ - Connectors / Wire to wire

Wire to wire /  RWZ - Schema

Product profile

ApplicationConnectors
ConnectorWire to wire
TechnologyCrimp
PitchOthers
Smtno

Spécifications

Insulation resistance500 MOhms min.
Temperature range-25øC to 85øC
Voltage ratingSignal circuit 50V AC, DC Power supply circuit 250V AC, DC
Applicable wireAWG #24 to #14
Mounting methodScrew, panel lock
Hand toolYC-840R
Crimping pressAP-KN21MJ
Semi-automatic applicatorMINI KB1T SRWF/M61-J
Compliant with rohs

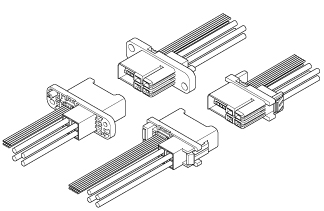

In unit connection, this RWZ connector is a hybrid type double row drawer connector with combined signal and power supply circuits, absorbs misalignment between units, and excels durability.
Pitch for signal circuits is 1.5mm realize
