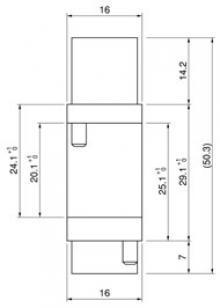

RWZ (L-TYPE) - Connectors / Wire to wire

Product profile

Application	Connectors
Connector	Wire to wire
Technology	Crimp
Pitch	0
Smt	no

Spécifications

Current rating	1A AC, DC
Insulation resistance	500 MOhms min.
Temperature range	-25øC to 85øC
Voltage rating	Signal circuit 50V AC, DC Power supply circuit 250V AC, DC
Applicable wire	AWG #24 to #14
Mounting method	Screw
Hand tool	YC-840R
Crimping press	AP-KN21MJ
Semi-automatic applicator	MINI KB1T SRWF/M61-J
Compliant with rohs

Download specifications

This connector is a hybrid type double-row drawer connector combined signal and power supply circuits connector to connect the units. RWZ connector with lever locking device is adopted as applicable socket to prevent incomplete mating.
