RPZ - Connectors / Wire to wire

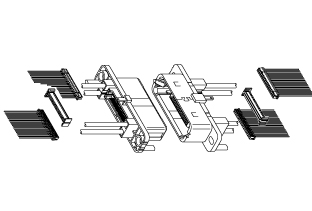

Wire to wire /  RPZ - Schema

Product profile

ApplicationConnectors
ConnectorWire to wire
TechnologyInsulation displacement
PitchOthers
Smtno

Spécifications

Current rating15A AC, DC
Insulation resistance500 MOhms min.
Temperature range-25øC to 85øC
Voltage ratingSignal circuit 50V AC, DC Power supply circuit 250V AC, DC
Applicable wireAWG #24 to #14
Crimping pressAP-KN21MJ
Semi-automatic applicatorMINI KB1T SPS-*1T-110-J/MINI KB1T SRP*-*1GG-P0.6-J
Compliant with rohs

Power supply circuit and signal circuit integrated hybrid type drawer connector.
With low insertion force mechanism, mating/unmating life of 20,000 cycles are guaranteed.
Both plug and receptacle have the
