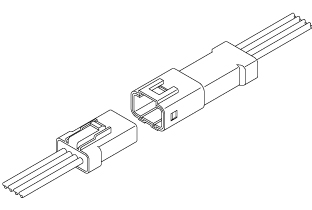

JWPF (W TO W) - Connectors / Wire to wire / Waterproof

Wire to wire /  JWPF (W to W) - Schema

Product profile

ApplicationConnectors
ConnectorWire to wire
FamilytypeWaterproof
TechnologySealed
Pitch2.0 mm
Smtno

Spécifications

Current rating3A AC, DC
Insulation resistance800 MOhms min.
Temperature range-40øC to 85øC
Voltage rating100V AC, DC
Applicable wireAWG #26 to #22
Waterproof grade> IPX7
Hand toolWC-JWPF/YRS-980
Crimping pressAP-KN21MJ
Semi-automatic applicatorMINI KB1T SWPR-001T-P025-J
Compliant with rohs

Compact waterproof connector, using 025 contacts and a single piece solid wire seal.
Superior contact performance is provided by the double-leaf construction, consisting of a main and assist leaf spring.
Housing lances
Inter-housing lock

Description filter


21 références
