EL - Connectors / Wire to wire

Wire to wire /  EL - Schema

Product profile

ApplicationConnectors
ConnectorWire to wire
TechnologyCrimp
Pitch4.5 mm
Smtno

Spécifications

Current rating10A AC, DC
Insulation resistance1000 MOhms min.
Temperature range-25øC to 90øC
Voltage rating300V AC, DC
Applicable wireAWG #26 to #16
Applicable panel thickness0.8 to 2.0mm
Hand toolWC-202/WC-203
Crimping pressAP-KN21MJ
Semi-automatic applicatorMINI KB1T SLF/M**T-P1.3E-J
Compliant with rohs

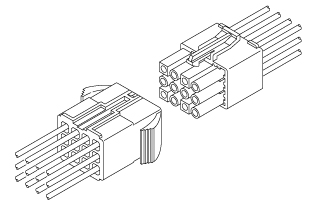

The contacts for the compact EL connector can be easily inserted into the connector housings. The plug housing and the receptacle housing can be smoothly mated even if they are mechanically distored.

Description filter


46 références
