BL - Connectors / Wire to wire

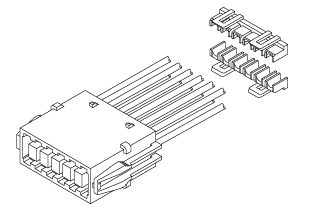

Wire to wire /  BL - Schema

Product profile

ApplicationConnectors
ConnectorWire to wire
TechnologyCrimp
Pitch3.96 mm
Smtno

Spécifications

Current rating7A AC, DC
Insulation resistance1000 MOhms min.
Temperature range-25øC to 90øC
Voltage rating300V AC, DC
Applicable wireAWG #22 to #18
Applicable panel thickness0.7 to 2.0mm
Hand toolWC-550
Crimping pressAP-KN21MJ
Semi-automatic applicatorMINI KB1T SSF-21T-P1.4-J
Compliant with rohs

The contacts for short-circuit connection arThe contacts for short-circuit connection are to be mounted in the housing
Housing lances
Secondary retainers enhance safety in case of partial insertion or accidental release of the contact.
The panel lock is designed to prevent tangling with wires and accidental breakage because of handling.
